Window extractor fan 125 M1OK2 Turbo up to 232 m3/h IP24

wattage: 24 W

airflow rate: 232 m³/h

integral return flap

IP24 splashing water protection


Item number 125 M1OK2 Turbo

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50/60 Hz
  • Housing colour: white
  • Material: UV-resistant ABS
  • Wattage: 24 W
  • Current consumption: 0.105 A
  • Airflow rate: 232 m³/h
  • Revolutions per minute: 2400
  • Sound pressure Lp-3m: 37 dB(A)
  • Weight: 1.3 kg
  • IP rating: IP24 splashing water protection
  • Control: on-site via on / off light switch (switch not included in the delivery)
  • Thermal overload protection
  • Maintenance-free operation
  • Motor-driven return flap prevents cold air from infiltrating
  • Included exterior hood
  • Mounting options: window
  • Suitable for continuous and intermittent air extraction in kitchens, bathrooms and other residential rooms
  • Cannot be installed in double-insulated windows

125 M1OK2 Turbo dimensions

Model Dimensions in mm
B H H1 L1 L2
125 M1OK2 Turbo 190 173 160 58 123

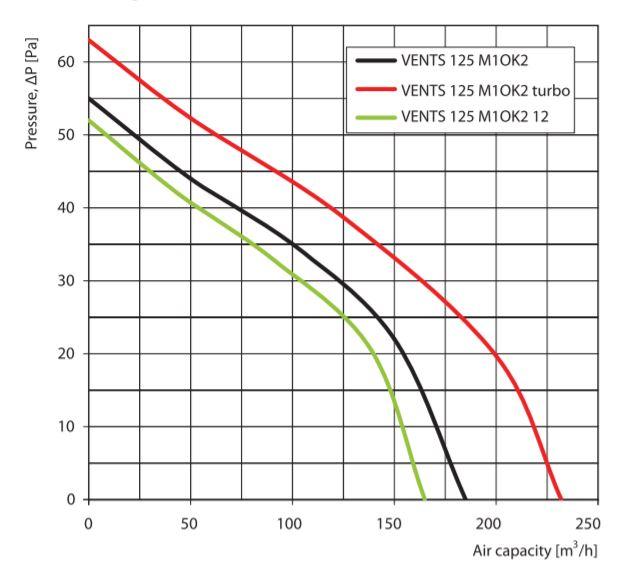

Characteristic curve

125 M1OK2 Turbo Characteristics
