Vents

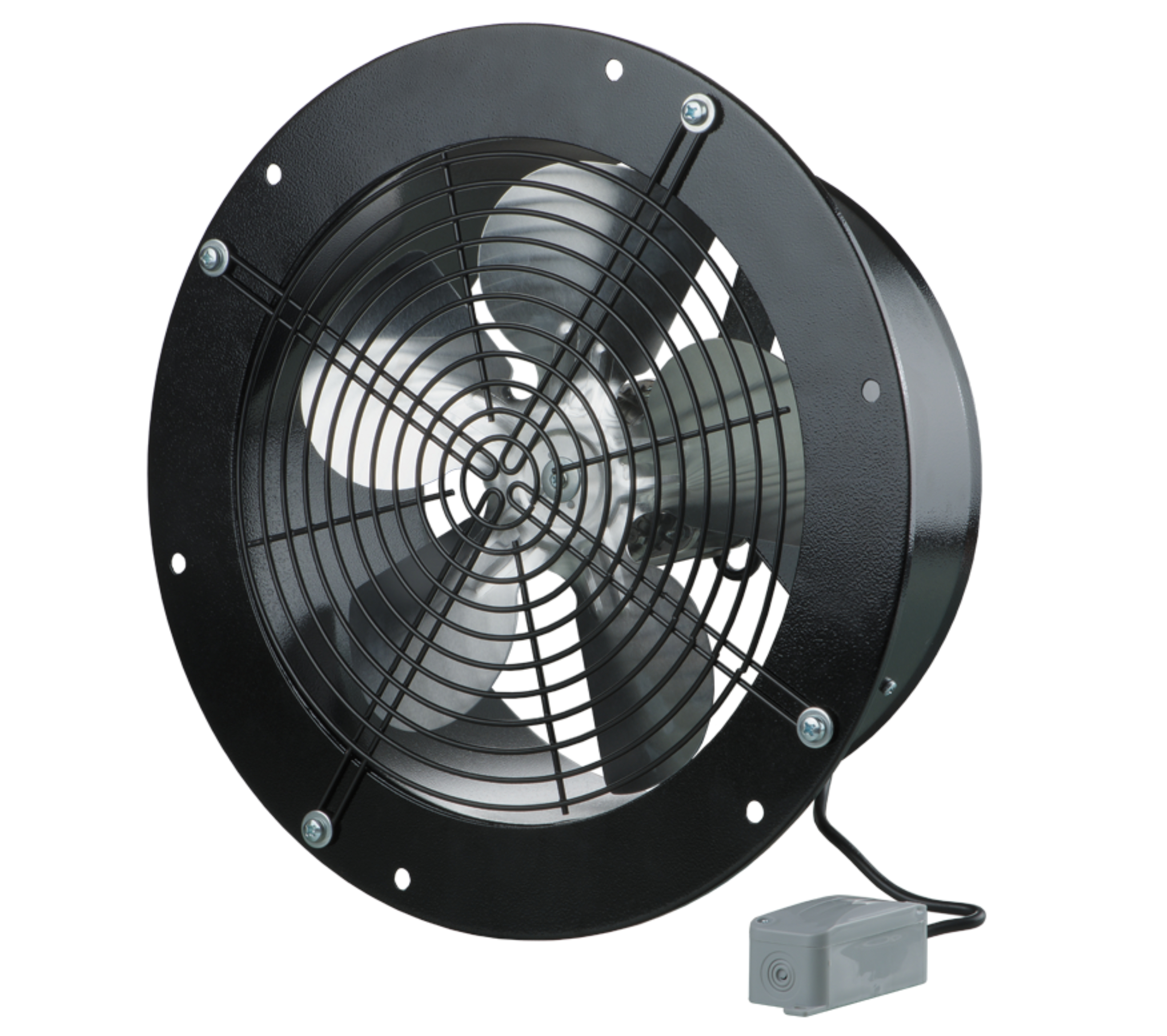

Wall-mounted fan Vents OVK1 315 up to 1700 m³/h IP24

nominal size: 315 mm

motor wattage: 110 W

housing colour: black

airflow rate: 1700 m³/h

IP24 splashing water protection


Item number OVK1 315

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 230 V ~ 50 Hz
  • Housing colour: black
  • Housing material: powder-coated steel
  • Nominal size: 315 mm
  • Wattage: 110 W
  • Current consumption: 0.75 A
  • Revolutions per minute: 1300
  • Airflow rate: 1700 m3/h
  • Sound pressure level Lp-3m: 42 dB(A)
  • Max. temperature of transported air: -30 to +40°C
  • IP code: IP24
  • Weight: 5.1 kg
  • Thermal overload protection
  • Application: air supply or extraction depending on the fan position, ventilation systems with low air resistance and demand for high airflow rate

Dimensions OVK1 315

Dimensions in mm Ø D Ø D1 Ø D2 Ø d L
OVK1 315 312 390 420 9 170
