TRT 400 V Roof fan Horizontal discharge up to 18000m³/h IP55

centrifugal roof-mounted fan, horizontal discharge

with thermal overload protection

model selectable: TRT 10 E to TRT 70 E

IP55 rating

400 Volt / three-phase alternating current


Item number 15355

delivery time up to 10 days


* Incl. VAT excl. Shipping



Dimensions and technical details

  • 400 V three-phase alternating current (TRT)
  • Various models available: select TRT 10 E to TRT 70 E
  • Housing: made of galvanised steel sheet, epoxy powder coated, resistant to corrosion and weather
  • Motor: insulation class H, IP55 rating, asynchronous, ball-bearing induction motor (2 speeds) with overload protection and external rotor.
  • Speed controller can be added (please order separately)
  • Impeller: self-cleaning, dynamically balanced, backward curved blades, ensures high airflow and pressure resistance
  • Intake port with guiding plates (made of galvanised steel sheet)
  • Includes steel safety wire for anchoring the appliance once it is installed
  • Models with the size 20 to 210 come with a lug that facilitates transport and handling
  • Round protection grille on the exhaust port can be detached for cleaning and maintenance
  • Application: Ventilation in large buildings, ideal for working places and production facilities, commercial environments, industrial buildings and culinary establishments.
  • Not suitable for extraction of air in ducts that are connected directly to fireplaces or burners



Model Max. wattage (W) Max. current consumption (W) Max. airflow (m3/h) Total pressure Pmax (Pa) Sound pressure level Lp-3m (dB(A)) Max. ambient temperature for continuous operation (°C)
TRT 10 E 4P - 400V/50Hz 100 0.3 1100 216 56.0 90
TRT 15 E 4P - 400V/50Hz 150 0.3 1400 255 58.8 90
TRT 20 E 4P - 400V/50Hz 300 0.6 2700 343 62.0 90
TRT 30 E 4P - 400V/50Hz 400 0.75 3200 451 67.0 90
TRT 50 E 4P - 400V/50Hz 800 1.45 4900 598 72.5 90
TRT 70 E 4P - 400V/50Hz 950 1.85 6400 677 77.0 90
TRT 70 E 6P - 400V/50Hz 600 1.30 7000 373 74.0 90
TRT 100 E 4P - 400V/50Hz 1900 3.25 10000 829 84.0 40
TRT 100 E 6P - 400V/50Hz 1100 2.3 10800 471 77.0 85
TRT 100 E 8P - 400V/50Hz 930 2.1 11000 334 71.0 80
TRT 150 E 6P - 400V/50Hz 1930 3.45 15000 598 80.0 55
TRT 150 E 8P - 400V/50Hz 1600 3.1 15000 441 74.0 75
TRT 180 E 6P - 400V/50Hz 3100 5.95 16000 775 83.0 60
TRT 210 E 6P - 400V/50Hz 3400 6.4 18000 775 84.0 50



Dimensions in mm

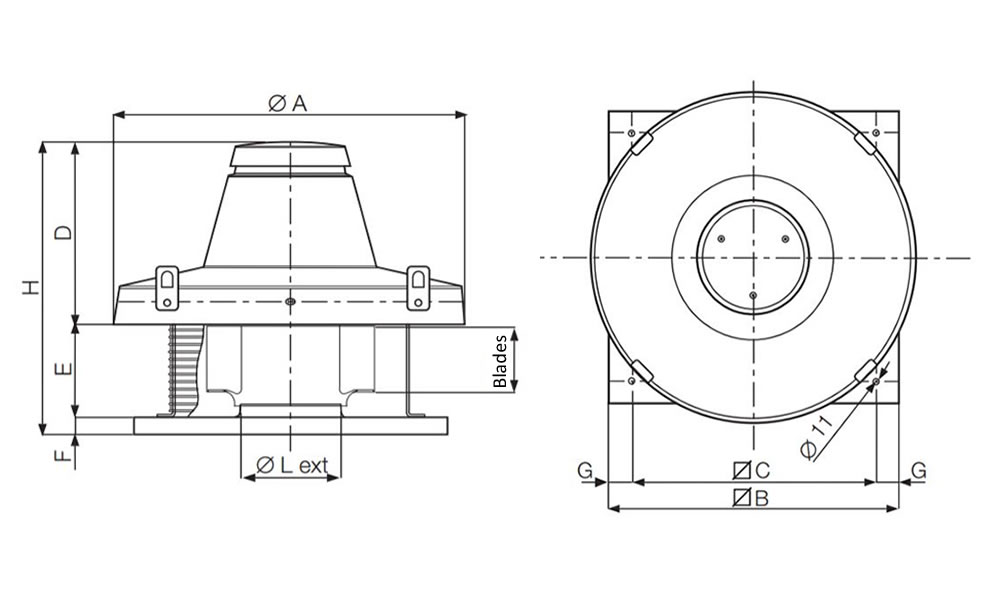

Vortice TRT 400 V standard model roof fan with horizontal discharge dimensions in mm

Model Ø A Ø B Ø C D E F G H Ø L kg
TRT 10 E 4P - 400V/50Hz 600 410 357 310 108 38 26.5 456 170 14.5
TRT 15 E 4P - 400V/50Hz 600 410 357 310 108 38 26.5 456 182 15
TRT 20 E 4P - 400V/50Hz 780 550 500 398 128 38 25 564 219 22
TRT 30 E 4P - 400V/50Hz 780 550 500 398 146 38 25 582 244 23
TRT 50 E 4P - 400V/50Hz 780 550 500 398 173 38 25 609 278 28
TRT 70 E 4P - 400V/50Hz 1015 830 750 449 283 38 40 770 328 77
TRT 70 E 6P - 400V/50Hz 1015 830 750 449 283 38 40 770 365 80
TRT 100 E 4P - 400V/50Hz 1015 830 750 449 283 38 40 770 365 81
TRT 100 E 6P - 400V/50Hz 1165 980 900 605 383 38 40 1026 415 117
TRT 100 E 8P - 400V/50Hz 1165 980 900 605 383 38 40 1026 465 127
TRT 150 E 6P - 400V/50Hz 1165 980 900 605 383 38 40 1026 465 128
TRT 150 E 8P - 400V/50Hz 1165 980 900 605 383 38 40 1026 520 132
TRT 180 E 6P - 400V/50Hz 1165 980 900 605 383 38 40 1026 520 130
TRT 210 E 6P - 400V/50Hz 1165 980 900 605 383 38 40 1026 520 132
