Vortice

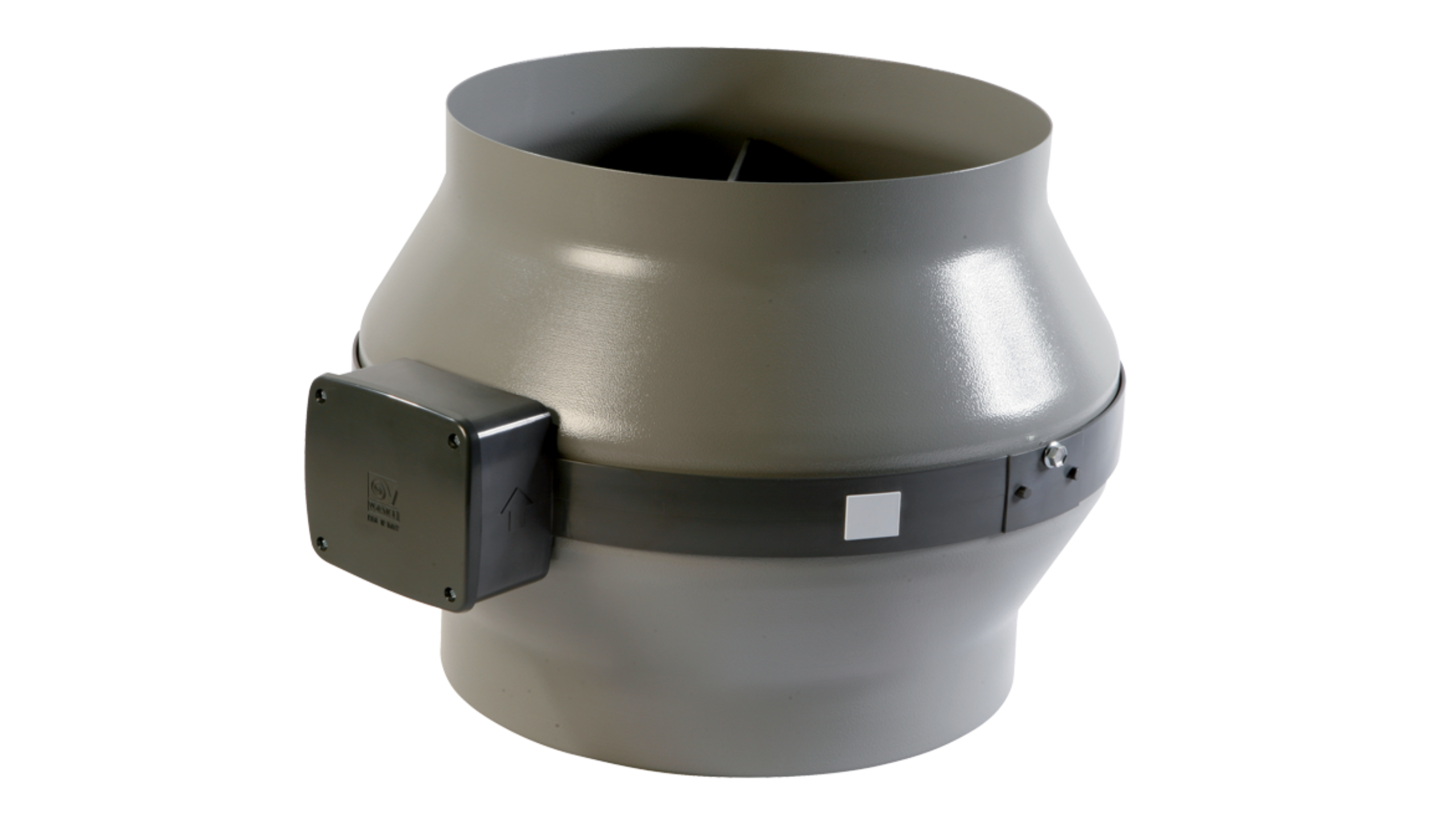

In-line fan Centrifugal fan CA 125 MD

in-line fan extractor

nominal width: 125 mm

max. wattage: 85 W

max. airflow: 445 m³/h

IP44 protection against splashing water


Item number 16151

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

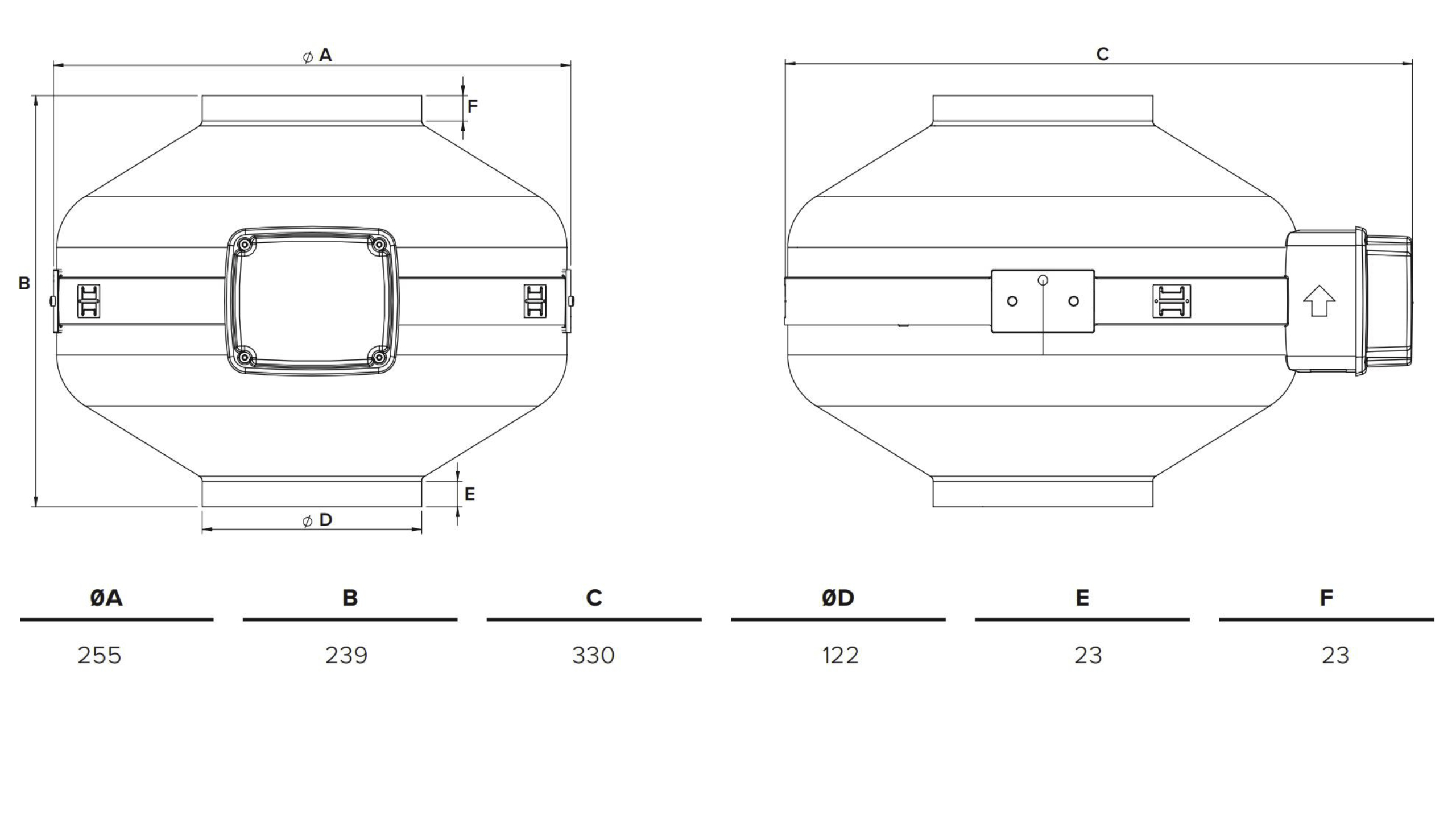

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Centrifugal inline fan with mounting brackets
  • Housing colour: hammered grey
  • Housing material: phosphated steel, polyester powder coating
  • Nominal width: 125 mm
  • Speeds: 3
  • Motor wattage: 26 / 47 / 85 W
  • Current consumption: 0.22 / 0.3 / 0.4 A
  • Revolutions per minute: 1130 / 1685 / 2300

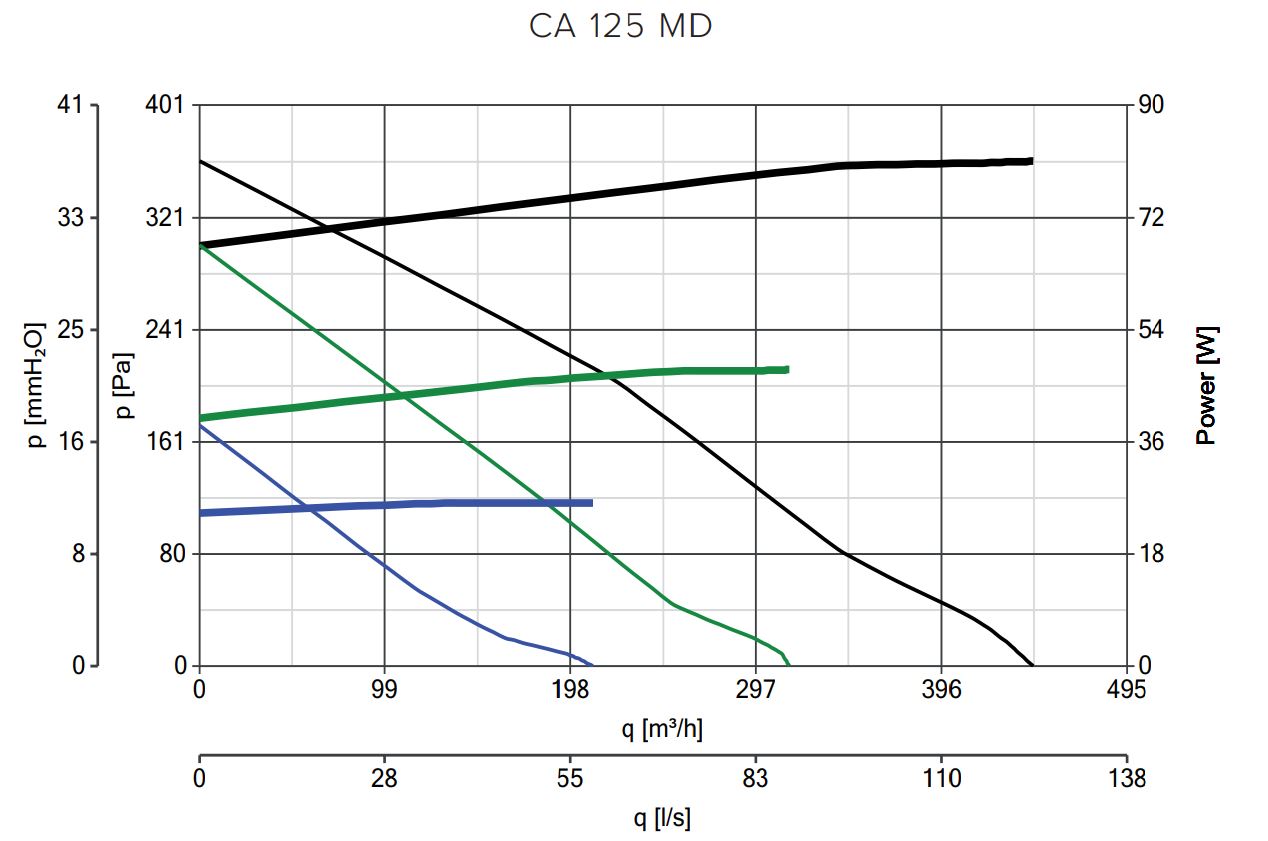

  • Airflow rate: 210 / 315 / 445 m3/h
  • Total pressure Pmax: 172.6 / 301.3 / 361.4 Pa
  • Max. sound pressure level Lp-3m: 45.9 dB(A)
  • Max. temperature for continuous operation: 50°C
  • Protection code: IP44
  • Insulation class: II
  • Diameter duct connection: 122 mm
  • Diameter without terminal box: 225 mm
  • Diameter with terminal box: 330 mm
  • Total depth: 239 mm
  • Weight: 3 kg
  • Thermal overload protection
  • Ball-bearing external rotor motor
