Awenta

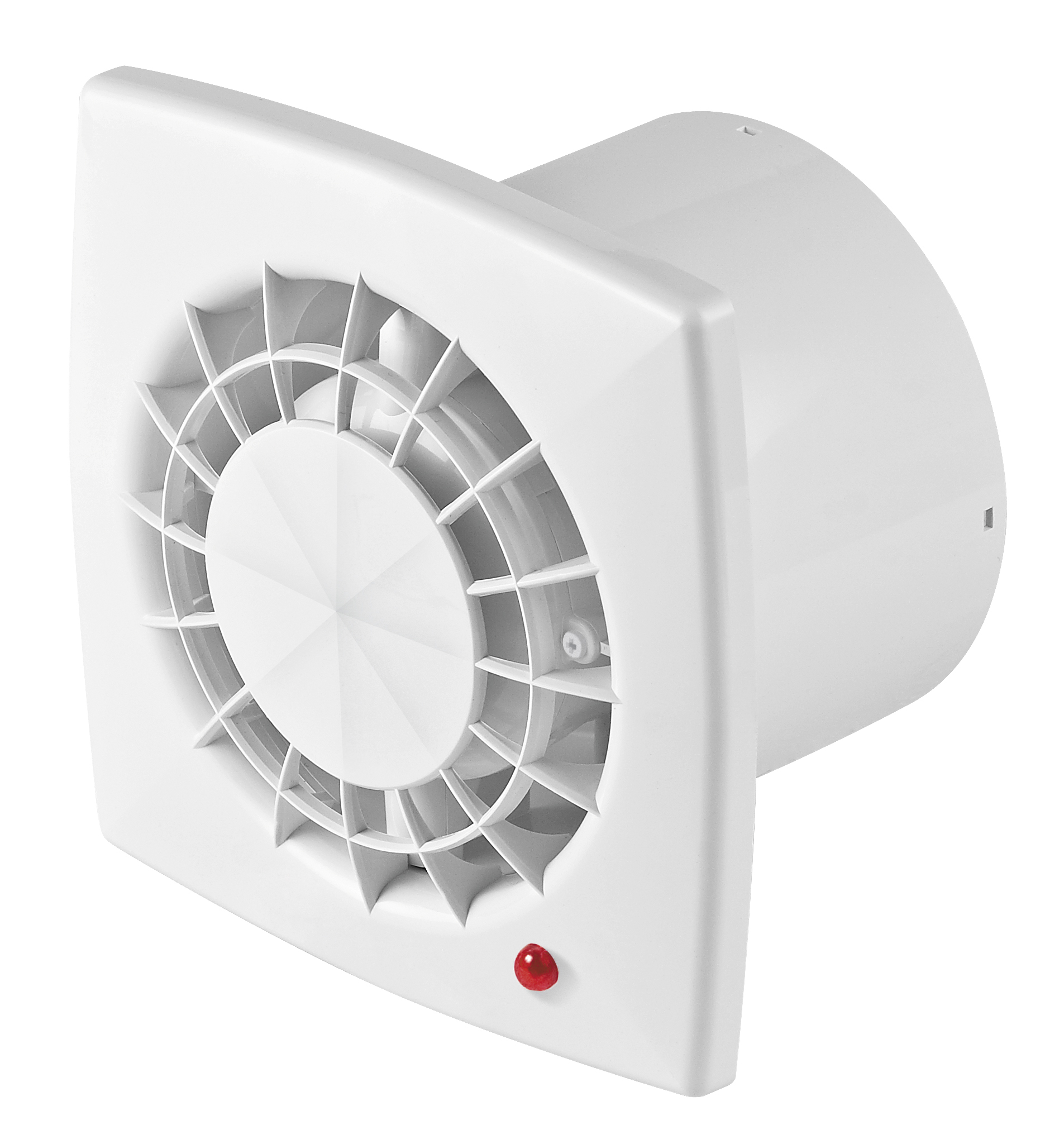

Wall-mounted extractor fan Vega 100 CTR with timer & speed regulator

nominal size: 100 mm

wattage: 14 W

max. airflow: 95 m³/h

IPX4 protection against splashing water

adjustable timer & speed control


Item number WGB100CTR

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Housing colour: white
  • Housing material: UV-resistant ABS
  • Speed levels: 4
  • Nominal size: 100 mm
  • Wattage: 5 / 7 / 9 / 14 W
  • Max. revolutions per minute: 2650
  • Airflow rate: 40 / 75 / 85 / 95 m³/h
  • Sound pressure level Lp-3m: 19 / 31 / 34 / 36 dB(A)
  • Total pressure Pmax.: 10 / 26 / 32 / 38 Pa
  • IP rating: IPX4
  • Max. ambient temperature: +40°C
  • Diameter pipe connection: 100 mm
  • Front cover: 140 x 140 x 18 mm
  • Total depth: 95 mm
  • Weight: 0.7 kg
  • Integral speed regulator: 4 speeds / off
  • Adjustable timer: 5 - 30 min shut-off delay, 1 - 10 h interval
  • Mounting options: wall, ceiling
  • Application: direct connection to the ventilation shaft
