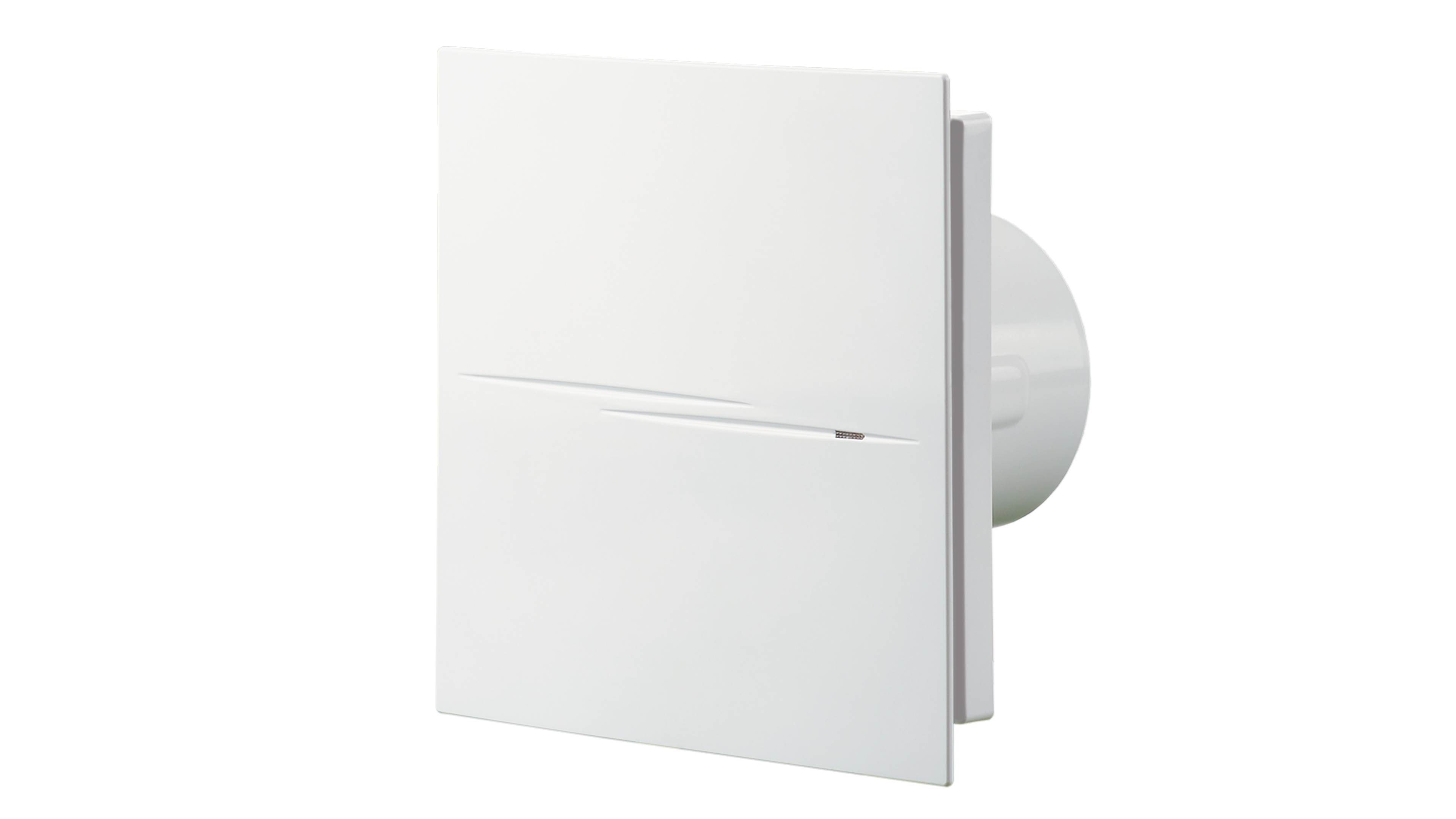

Wall-mounted extractor fan Quiet Style 100

nominal size: 100 mm

wattage: 7.5 W

max. airflow: 90 m³/h

IP45 protection against water jets


Item number Quiet Style

EUR 49.65 *
Content 1 piece
Unit price EUR 49.65 / piece
item currently not available, estimated delivery time of maximum 10 weeks

item currently not available, estimated delivery time of maximum 10 weeks


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Housing colour: white
  • Housing material: UV-resistant ABS
  • Nominal size: 100 mm
  • Wattage: 7.5 W
  • Current consumption: 0.05 A
  • Speed levels: 1
  • Max. airflow rate: 90 m³/h
  • Sound pressure level Lp-3m: 26 dB(A)
  • IP rating: IP45
  • Diameter pipe connection: 99 mm
  • Front cover: 200 x 200 mm x 49 mm
  • Total depth: 130 mm
  • Weight: 0.7 kg
  • On / off via light switch (to be provided on-site)
  • Thermal overload protection
  • Integral backdraught shutter prevents cold air from infiltrating
  • Mounting options: wall, ceiling
  • Application: direct connection to the ventilation shaft

Item ID 1353205202
Manufacturer Vents
