Vents

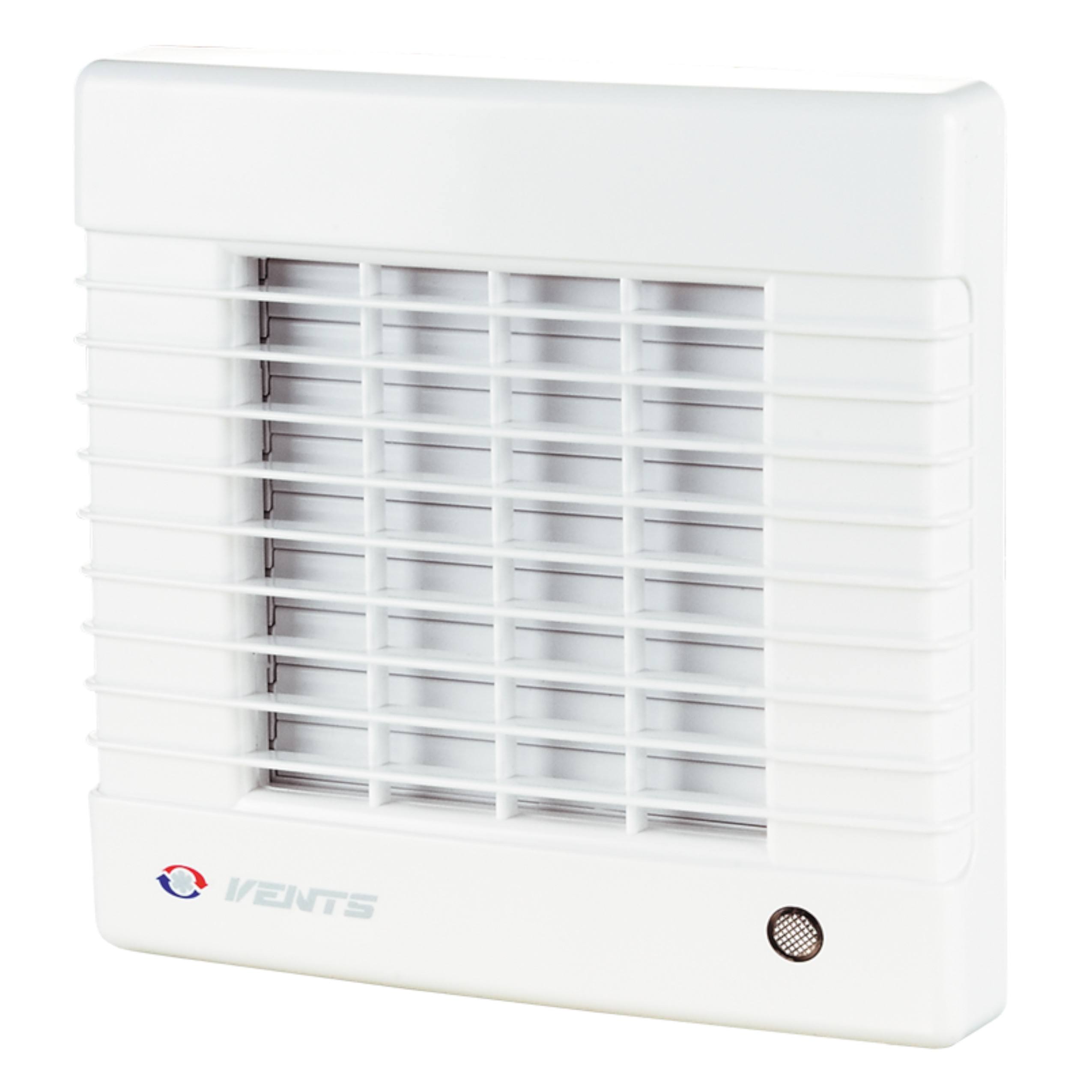

Axial-flow extractor fan for walls & ceilings MA 100

nominal size: 100 mm

wattage: 18 W

max. airflow: 98 m³/h

IP24 protection against splashing water


Item number 100 MA

EUR 32.75 *
Content 1 piece
Unit price EUR 32.75 / piece
immediately ready for dispatch, delivery time 2 - 3 days

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

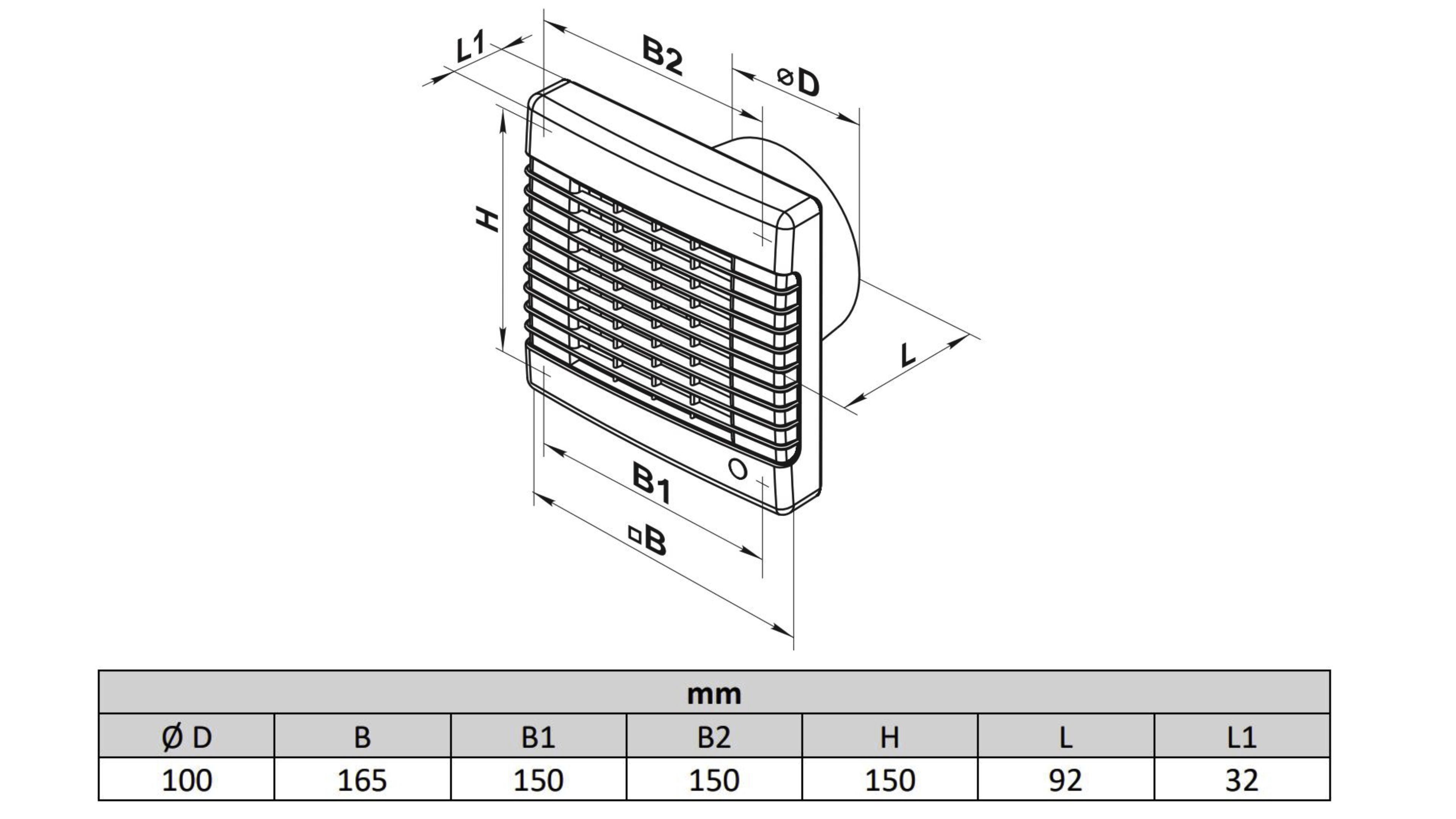

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Housing colour: white
  • Housing material: UV-resistant ABS
  • Nominal size: 100 mm
  • Speed levels: 1
  • Wattage: 18 W
  • Current consumption: 0.085 A
  • Revolutions per minute: 2300
  • Max. airflow rate: 98 m³/h
  • Sound pressure level Lp-3m: 34 dB(A)
  • IP rating: IP24
  • Front cover: 165 x 165 x 32 mm
  • Total depth: 92 mm
  • Weight: 0.65 kg
  • Thermal overload protection
  • Integral backdraught valve prevents cold air from infiltrating the system
  • Mounting options: wall, ceiling
  • Application: continuous or interval air extraction in bathrooms, WCs, laundry rooms etc. in residential and commercial buildings
