Supply and exhaust Disc valve AZTVK in various sizes

Item ID
1176
Producer
CasaFan
EAN
4024397356256

Producer logo
Only 500 Euro until free shipping.
No shipping costs for orders over € 500,00*
*Only for orders within the EU.

Supply and exhaust Disc valve AZTVK in various sizes



Dimensions and technical details

  • Supply and exhaust air valve, adjustable airflow
  • Model selectable: AZTVK 75/80 to AZTVK 200
  • Material: high-quality, antistatic plastic
  • Colour: white
  • Application: air supply and extraction in rooms without any special fire protection requirements
  • Temperature range up to 100°C
  • Circular foam gasket ensures false excess air cannot infiltrate from the sides, thus preventing contamination
  • Suitable for pipes or wall openings with a thickness of 2cm or more
  • Mounting ring is included: for installation in sheet metal ducts or thin panels
  • Compensates for bumps on the wall and pipes that are plastered too deep
  • Easy to install with clamping springs
  • Low-noise: low sound pressure level thanks to valve disc with sound absorber
  • Turning the disc adjusts airflow and pressure



Dimensions in mm

Model NW A (mm) Ø B (mm) Ø C (mm) Ø D (mm) Ø E (mm)
AZTVK 75/80 75/80 73 - 85 45 115 38 20
AZTVK 100 100 95 - 105 80 140 35 13
AZTVK 125 125 120 - 130 115 166 35 15
AZTVK 150 150 150 - 165 120 204 37 17
AZTVK 160 160 155 - 175 130 204 37 17
AZTVK 200 200 195 - 210 160 242 35 17

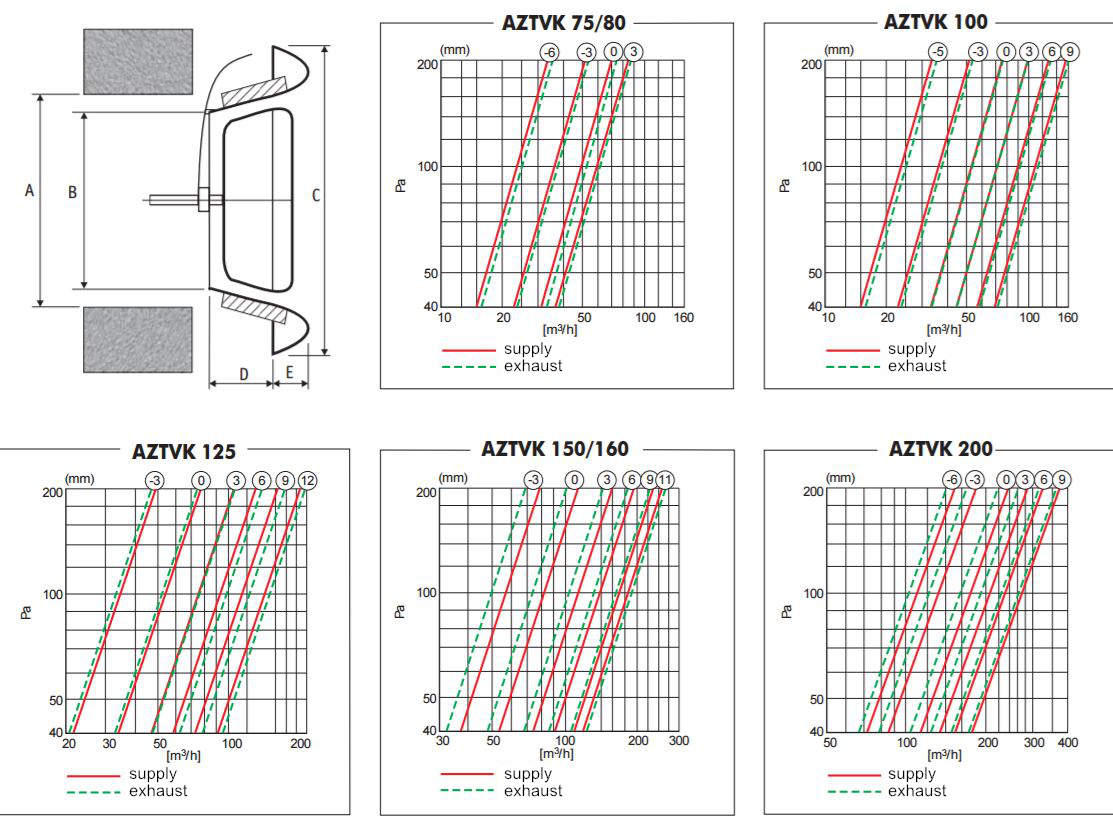

AZTVK air grille disc valve dimensions and pressure airflow diagram

.
