Dimensions and technical details
- 230 V ~ 50 Hz
- Max. load: 10A
- Housing: ABS plastic, colour light grey
- Installation: on-wall (surface-mounted), use to control one or several fans depending on room temperature
- CTH10: semiconductor sensor inside the housing
- CTHf10: external remote sensor (connection to common 2-pole wire, 2x 1,5mm²)
- Adjustable range: +5 °C to +35°C, switching differential ca. 2K
- Control: operation of the fans in case of increasing or decreasing room temperature (optional as opening or closing contact)
- Can be used in combination with a speed controller / step transformer (sold separately)
- Fitted with noise suppression
- IP54

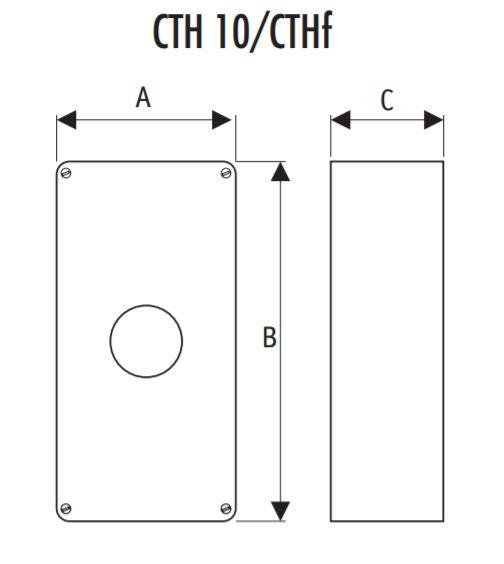

| Model | Description | B (mm) | H (mm) | C (mm) |
| CTH 10 | Thermostat with integrated sensor | 80 | 160 | 57 |
| CTHf 10 | Thermostat with remote sensor | 80 | 160 | 57 |
| Remote sensor | 80 | 80 |
