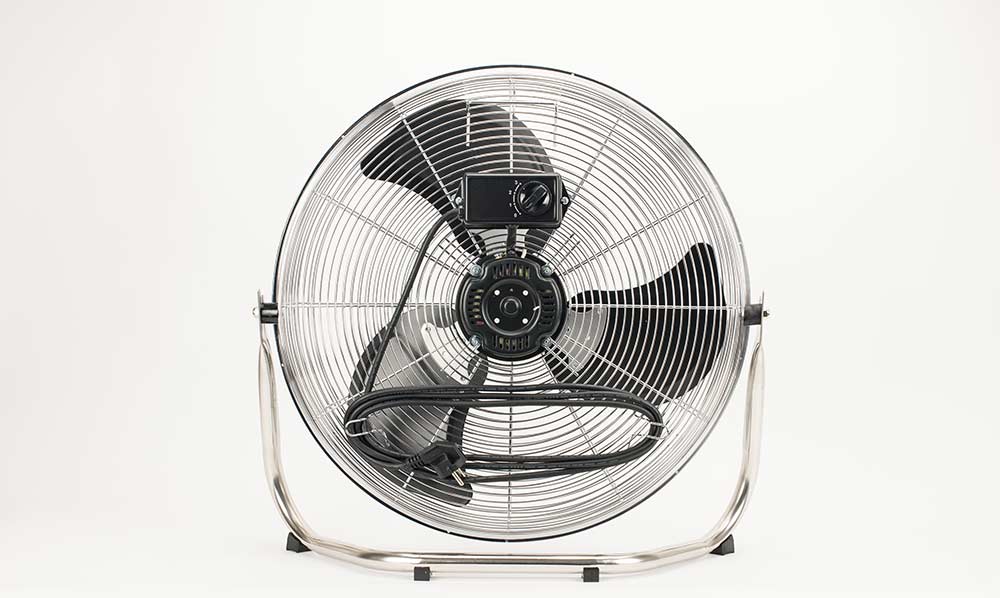

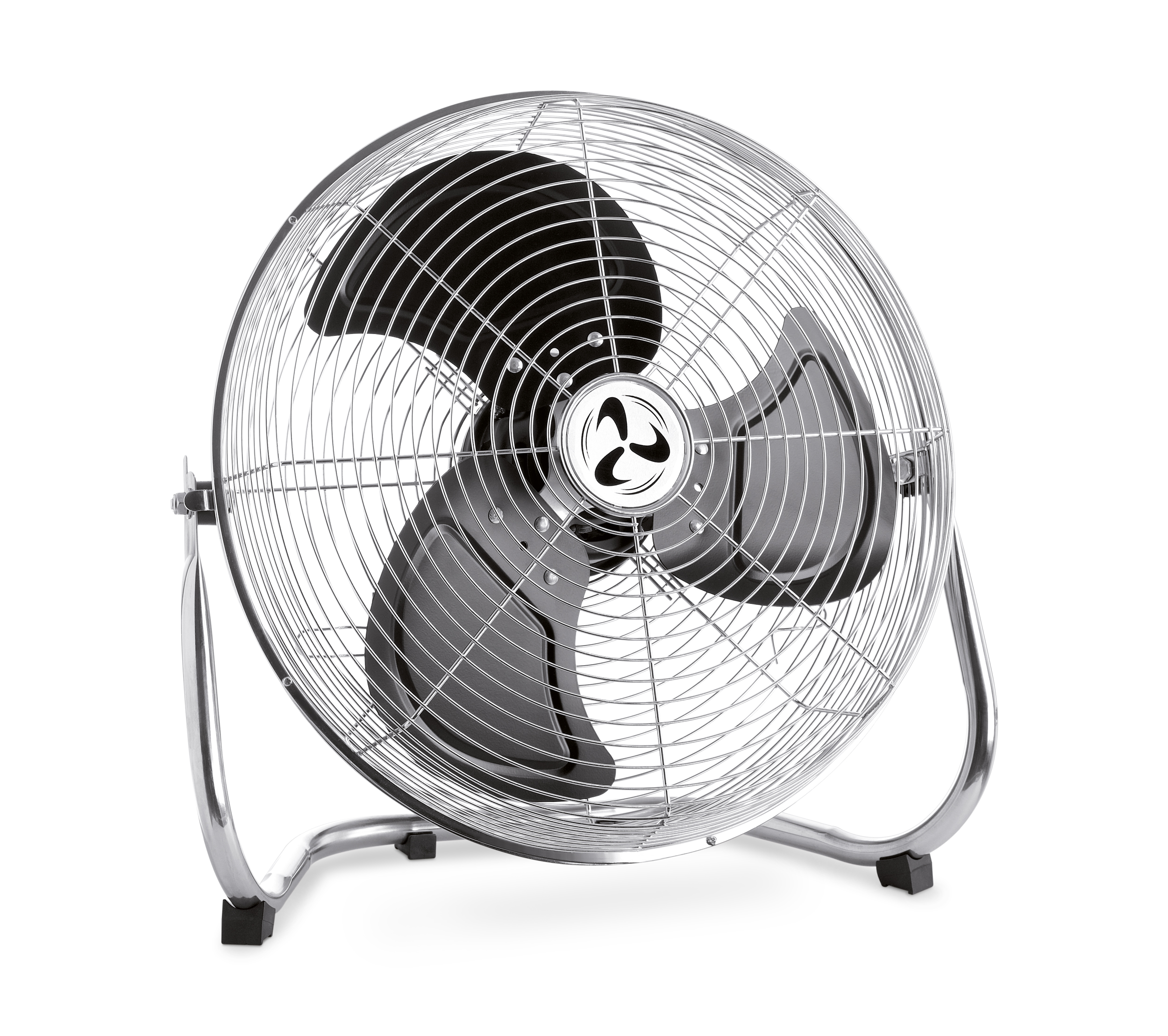

CasaFan floor fan wind machine Speed 50-G CH IP20

The CasaFan Wind Machine Speed 50 G provides cooling and a mixing of air which is much needed on construction sites, to name one example. Therefore, emphasis was put on safety as well: Thanks to a steady base and a protective grille the chance of accidents was reduced to a minimum. Despite its enormous air flow rate of up to 7,860 m³/h the Speed 50 scrimps on costs for energy: Even when set to the highest speed, it impresses with efficient energy consumption, using only a maximum of 120 Watt.



Dimensions and technical details

  • 230 Volt / 50 Hertz

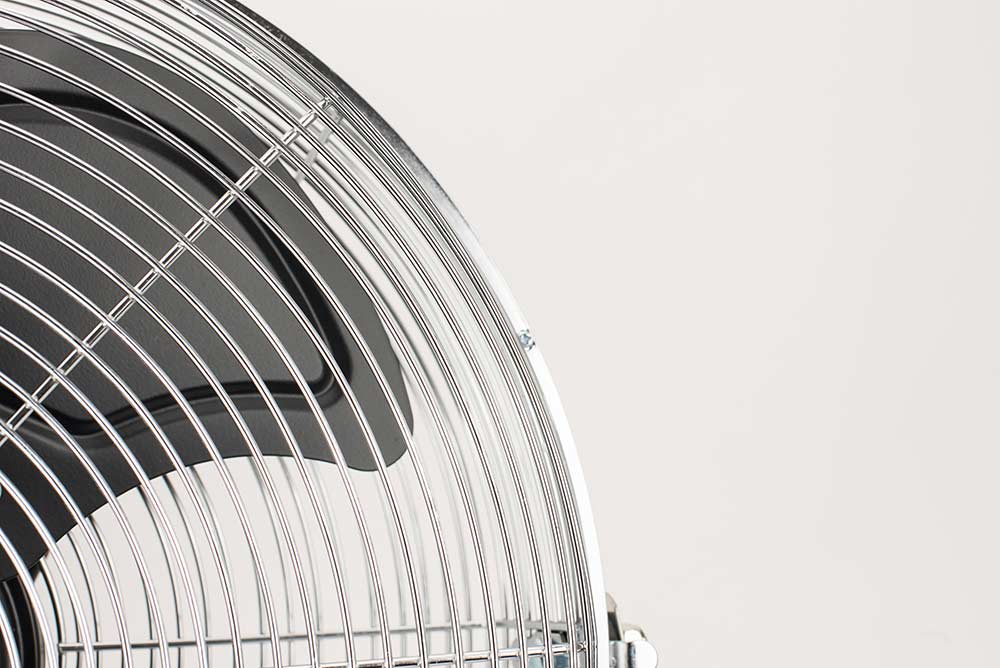

  • Robust grille for protection from injuries, chrome finish
  • Also suitable for wall mounting and chain suspension (mounting material not included in the delivery, needs to be provided on-site)
  • Protective grille, housing and tubular frame with polished chrome finish
  • Blades black finish
  • Diameter cage: 55 cm / 21.65"
  • Diameter blades: 50 cm / 19.69"
  • Width total: 65 cm / 25.59"
  • Width cage: 55 cm / 21.65"
  • Height: 58 cm / 22.83"
  • Fan wheel made of aluminium
  • Power consumption in Watt: 120
  • Max. airflow: 7860 m³/h
  • Max. rotation speed (rpm): 1310

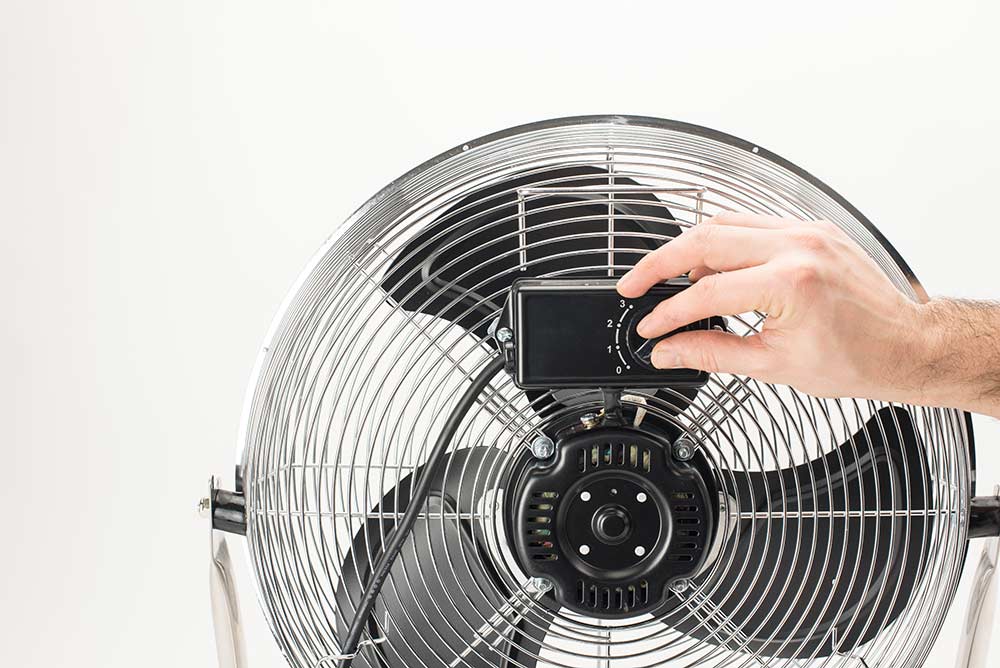

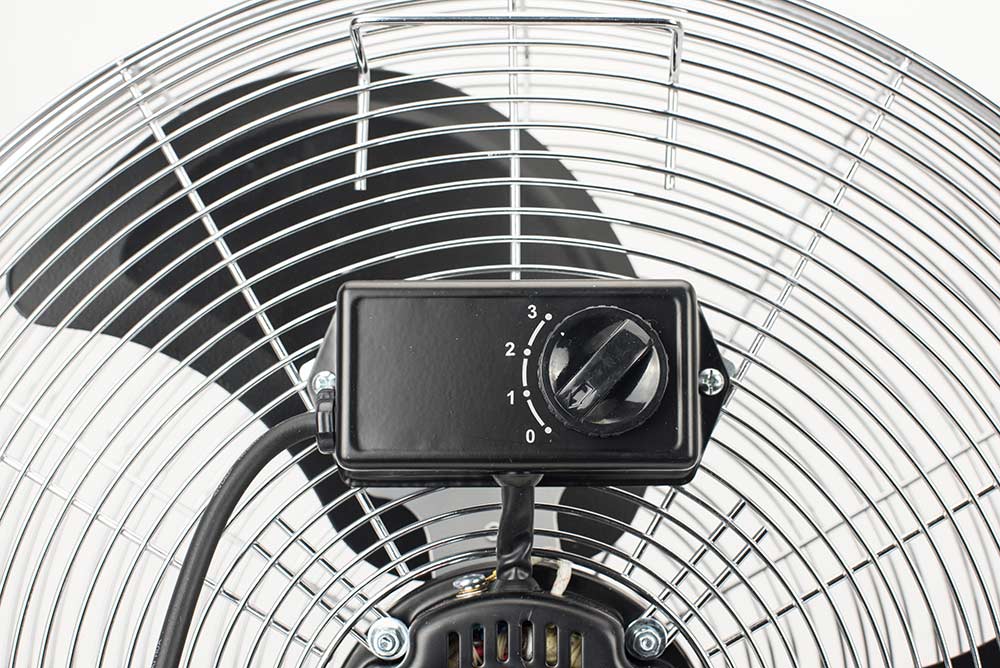

  • 3 fan speeds (selected with rotary switch)

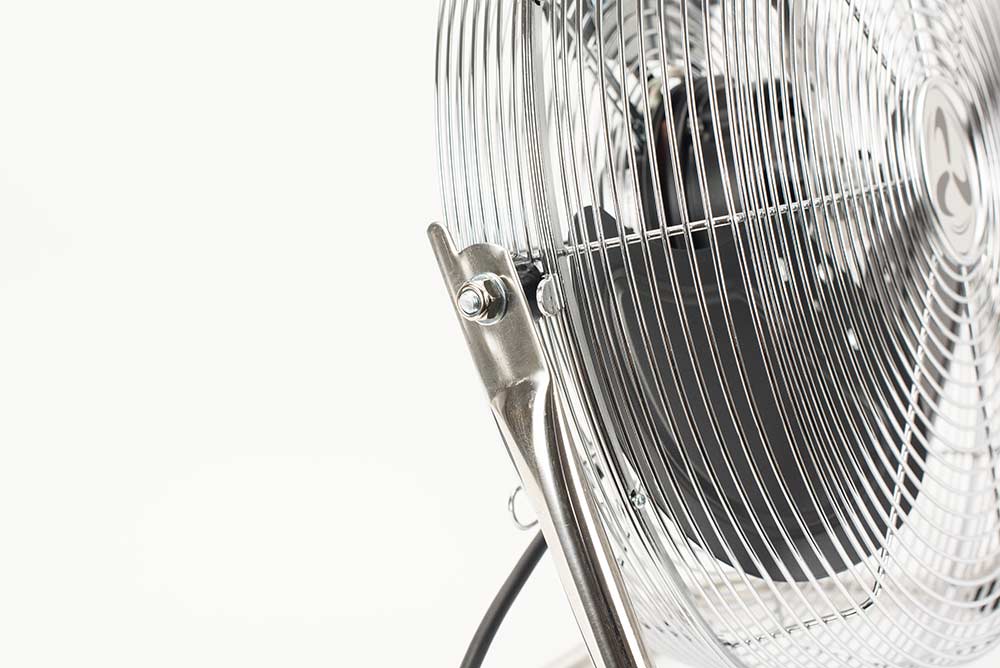

  • Vertical tilt adjustable
  • Stable, steady tubular frame base with rubber feet and wheels

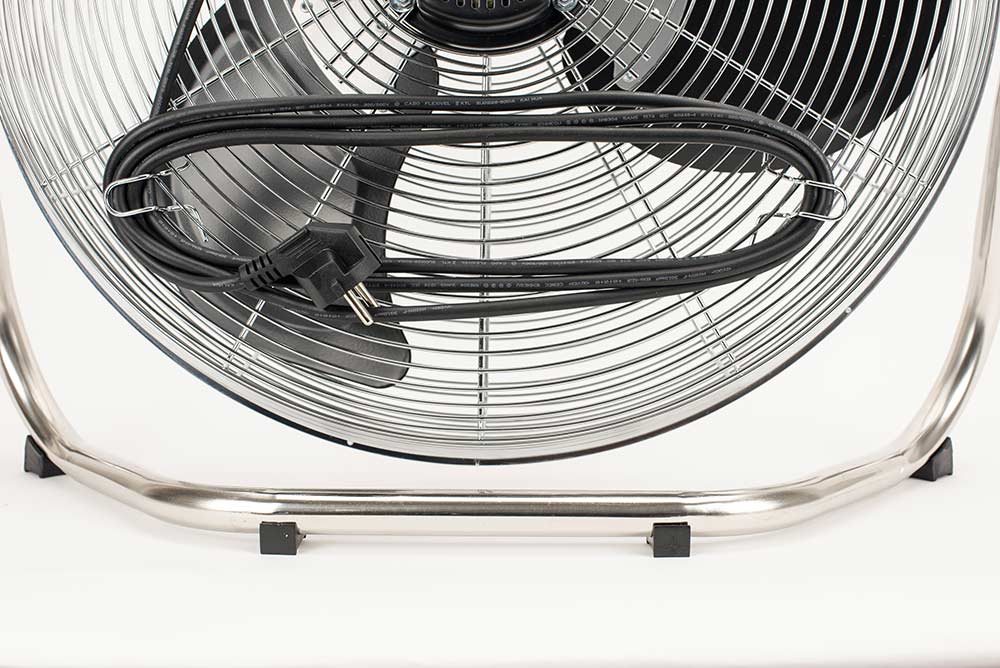

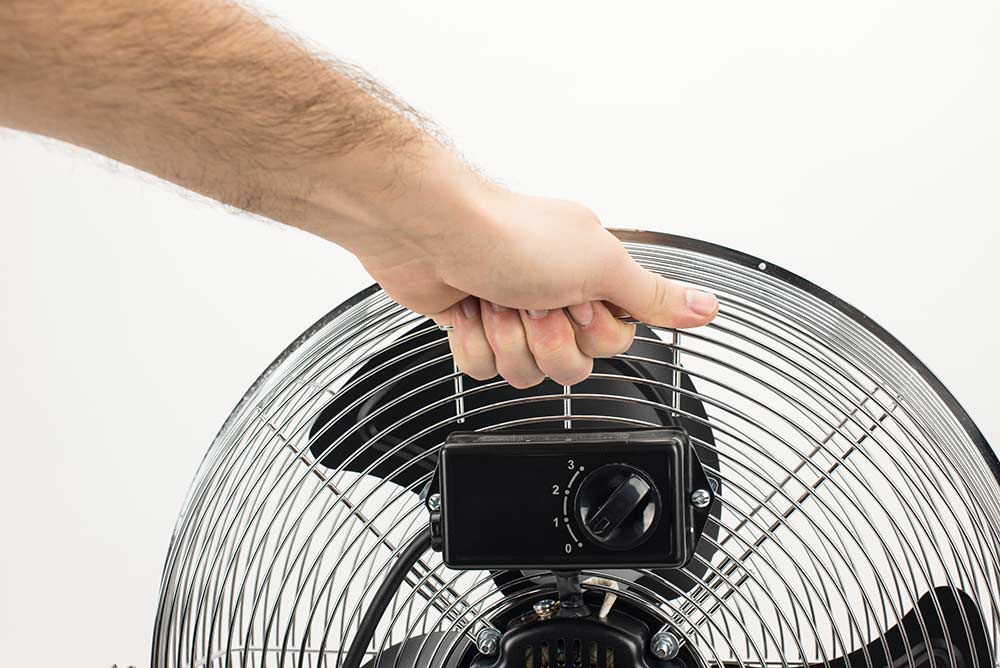

  • Handy carrying handles on the housing as well as cord wrap on the back of the protective grille
  • Cable HO5RN-F 3 x 1.0 mm² , 2.5 m with type F plug for high mechanical exposure in professional environments
  • IP code IP20
  • Weight: 5.5 kg


Attention: This wind machine is delivered with a type F Schuko plug, you might need an adapter.


If required, 5 speed transformer ETWZ 1.0 allows regulation from low to high performance.
.

Accessory

5 step tapped transformer ETW Z 1,0 for fans
