Marley

Marley small room fan / bathroom fan P10 MP 100 E max. 110 m³/h IP24

• protection: IP24 • inline fan • wall and ceiling mounting options


Item number 322421

immediately ready for dispatch, delivery time 2 - 3 days


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 230 Volt / 50 Hertz
  • Colour: white
  • Type: axial fan
  • Model: inline fan
  • Delivery includes mounting kit for installation between two pipes
  • Mounting options: wall or ceiling
  • Ideal for long airways
  • Used as supply or exhaust fan depending on installed position
  • Protection class: II (double protective insulation)
  • Protection code: IP24
  • Power consumption: 15 Watt
  • Max. air way: 3.0 m
  • Max. output pressure: 50 Pa
  • Max. sound pressure: 29 dB(A)
  • Max. air temperature: 40°C
  • Dimensions: 99 Ø x 145 mm
  • Connection to ducts: Ø 100 mm
  • Weight: 0.70 kg

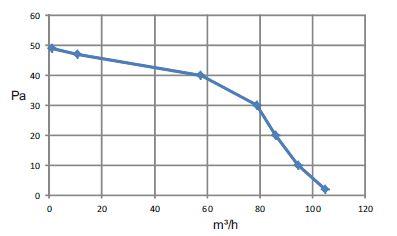

Pressure - volume characteristic diagram

Marley in line fan P10 MP 100 E characterstic diagram

Connection diagram

Marley in line fan P10 MP 100 E connection diagram
