Marley

Marley small room fan / bathroom fan P11 MP 100 S max. 83 m³/h

• protection: IP24 • ideal for bathrooms without windows • humidity control


Item number 322414

delivery time ca. 3 - 5 days


* Incl. VAT excl. Shipping

Dimensions and technical details

  • 230 Volt / 50 Hertz
  • Colour: white
  • Type: semi-centrifugal fan
  • Ideal for bathrooms without windows
  • Humidity control
  • Adjustable flow rate
  • Adjustable basic and intense ventilation
  • Post-run timer
  • Continuous operation only
  • Mounting options: wall or ceiling
  • Control via touchpad
  • Protection class: II (double protective insulation)
  • Protection code: IP24 (protected against splashing water)
  • Power consumption: 1.1 - 4.1 Watt
  • Max. airway: 6.0 m
  • Output: 10 - 83 m³/h
  • Post-run timer: 0 - 15 minutes
  • Max. output pressure: 110 Pa
  • Max. sound pressure 32 dB(A) (during 30 m³/h)
  • Max. air temperature: 40 °C
  • Dimensions: Ø 199 x 130 mm
  • Connection to ducts: Ø 100 mm
  • Weight: 0.76 kg

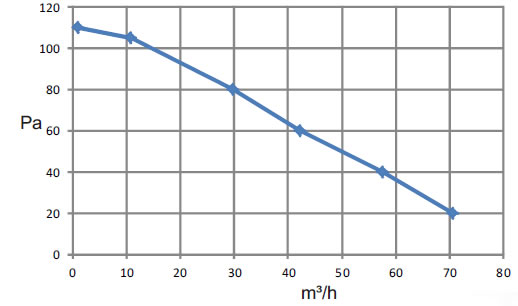

Pressure - volume characteristic diagram

Marley P11 MP 100 S characteristic diagram

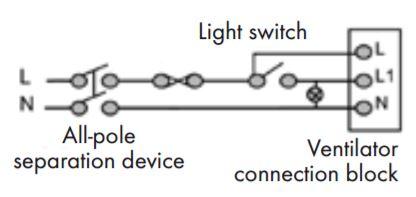

Connection diagram

Marley bathroom fan P11 MP 100 S connection diagram
