immediately ready for dispatch, delivery time 2 - 3 days
Dimensions and technical details
- 220-240 V ~ 50 Hz
- Housing material: galvanised steel
- Impeller material: ABS plastic
- Speed levels: 2
- Wattage min./max.: 20 / 29 W
- Current consumption min./max.: 0.1 / 0.13 A
- Revolutions per minute min./max.: 714 / 1026
- Airflow rate min./max.: 130 / 210 m³/h
- Airflow rate min. / max.: 36 / 58 l/s
- Sound pressure level Lp-3m min./max.: 24 / 27 dB(A)
- IP code: IPX4
- Weight: 5.3 kg
- Control panel on the fan
- Overheating protection
- Integral backdraught shutter prevents cold air from infiltrating

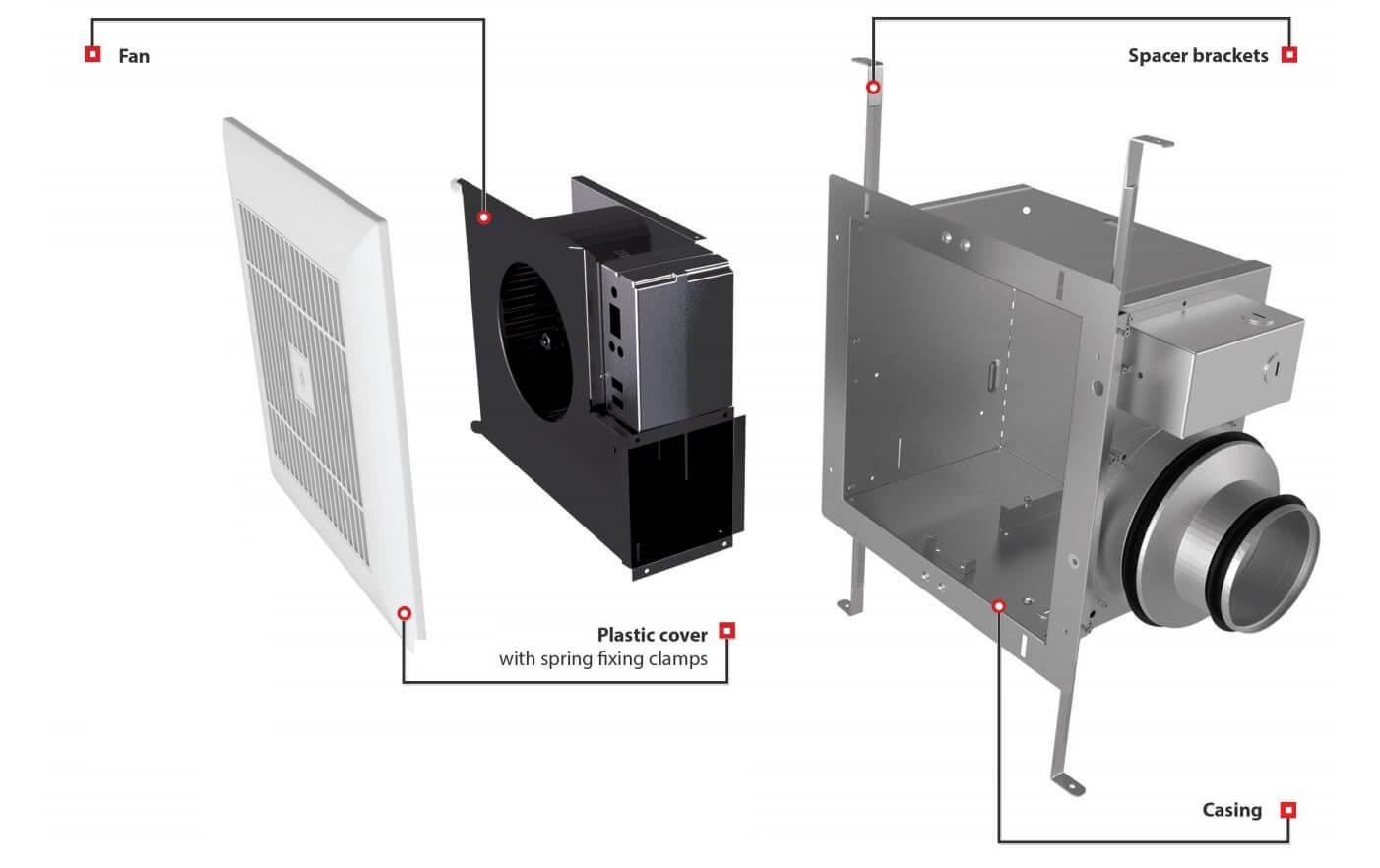

- Includes mounting frame
- Mounting options: ceiling
- For pipe systems with high air resistance (diameters 100 mm and 150 mm)
- Application: permanent and interval ventilation in bathrooms, showers, kitchens, living rooms
| Dimensions in mm | A | E | B | L1 | L2 | h | H | Ø D | d | C |
|---|---|---|---|---|---|---|---|---|---|---|
| CBF 200 | 330 | 395 | 258 | 100 | 45 | 18 | 188 | 148 | 98 | 260 |
